Automatic Beverage Bottled Mineral Water Filling Machine SUS304

Brand Name : QJ

Place of Origin : shanghai

MOQ : >=1

Payment Terms : L/C, T/T

Packaging Details : International standard package of your request

Automatic grade : Automatic

Application : Beverage

Condition : New

Packaging type : Bottles

Packaging material : Plastic,Glass

Material : SUS304

Warranty : 1 Year

Name : filling machine

Contact Now

Automatic Three In One Beverage Bottled Mineral Water Washing Filling Capping Machine

Product Description

CGF16-16-6 Food & Beverage Factory Applicable Industries Bottled Mineral Water Filling / Bottling / Packing Machine

Automatic Beverage Bottled Mineral Water Filling Machine SUS304

Automatic Mineral Water Bottling Plant Price for Small bottle water production line Investment Factory African

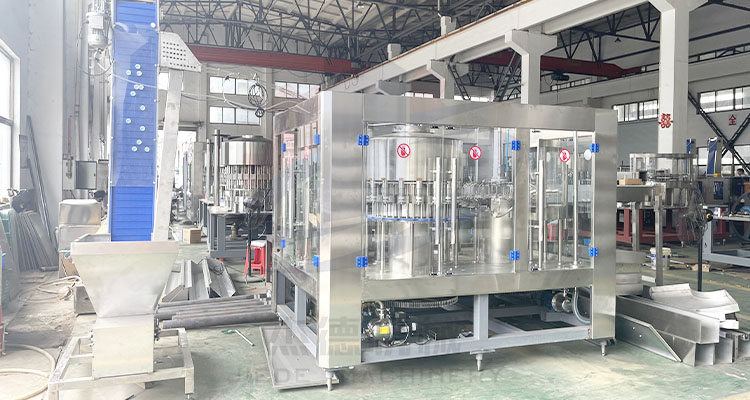

This CGF Wash-filling-capping 3-in-1 unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water,alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and capping, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Filling Machine Benefits

1) The machine is mainly used for PET bottled non-carbonated beverage production line,such as spring water and wine drinks

 2) Washing,filling and capping are available in one machine

 3) The contact time between raw materials and the outside world has been reduced to improve the health conditions, production capacity and economic benefits

 4) The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type

 5 )Using the advanced PLC(Programmable Logic Controller) technology

 6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON

 7) Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage

 8) Optimum uptime: 30 % reduction in changeover and maintenance downtime

 9) Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption

 10) Hygiene improvement through volume control and contactless filling

 11) Automatic dump bottles: Safer, easier cleaning procedures

 12) Automatic bottle changeover improves uptime

Mold	CGF8-8-3	CGF14-12-5	CGF16-16-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15	CGF60-60-15
Production capacity(B/H)	1000-2000	2000-3500	3500-5000	5000-7000	7000-12000	12000-15000	15000-20000	20000-24000	24000-30000
Suitable bottle shape	Circular or Square
Bottle diameter(mm)	Φ50-Φ95
Washing	Aseptic Water
Total power	2.5	3	3.5	4	5.5	7.5	11	15	20
Weight (kg)	1800	2200	2800	3000	4500	6000	9000	15000	18000
Overall dimensions(mm)	1800*1200	2050*1550	2400*1750	2550*1850	3000*2150	4200*2700	4700*3200	6500*3350	7200*3650

Details Images

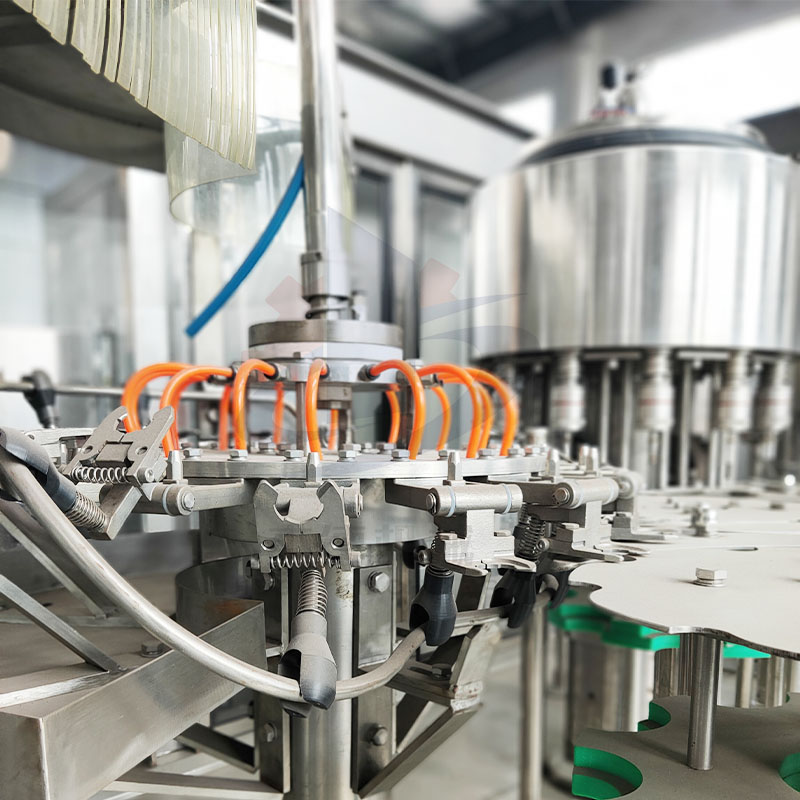

Washing Heads

1)Into bottle way is air conveyor direct connection with Bottle dial2)All 304/316 stainless steel rinse heads, water spray style
 inject design, more save water consumption and more clean
 3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
 4)304/316 stainless steel washing pump make the machine more durable

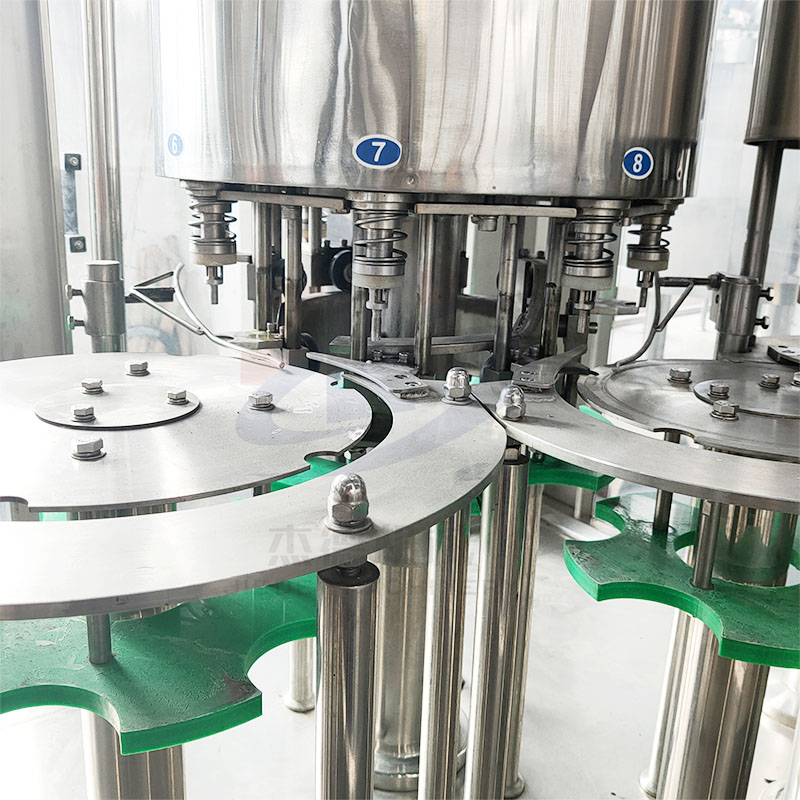

Filling Heads

1)304/316 Stainless steel high precision filling nozzle2) Filling volume adjustable in fine rank, same liquid level after filling
 3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
 4) 304/316 stainless steel filling pump
 5)Efficient spray nozzle rinse thoroughly and save water for flushing

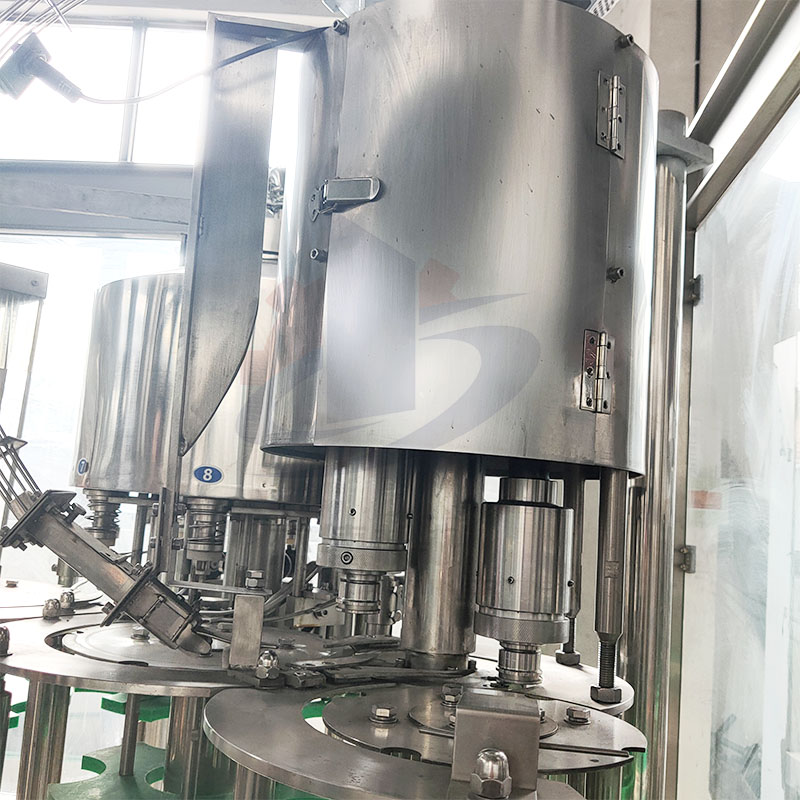

Capping Heads

1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
 capping
 2)All 304/316 stainless steel construction
 3)No bottle no capping
 4)Automatic stop when lack of bottle
 5)Capping effect is stable and reliable ,Defective rate ≤0.2%
