Pineapple Juice Puree Beverage Production Processing Line UHT Sterilizing

Brand Name : qj

Place of Origin : shanghai

MOQ : >>1

Price : $20000-100000/unit

Payment Terms : T/T, L/C

Delivery Time : 45days

Packaging Details : international package of your request

Certification : CE

Voltage : 220V/380V

Automatic grade : Automatic

Condition : New

Application : Beverage

After-sales service provided : Engineers available to service machinery overseas

Packaging material : Plastic,Glass

Contact Now

Product Overview

Pineapple Juice Puree Beverage Production Processing Making Filling Line

Pineapple is one of the most popular tropical fruit and the consumption of its delicious juice is increasing significantly. We has developed highly specialized technologies for the production of both natural and concentrated pineapple juice. We are especially proud of our dedicated pineapple juice production line, which guarantees utmost product quality by minimizing any contact between peel and juice.
 We design, manufacture and supply complete Pineapple Production Processing Line including:
 – Washing and Sorting System
 – Chopping and Refining System
 – Falling Film Evaporator System
 – UHT Sterilizing and Aseptic Filling System

Pineapple Juice Puree Beverage Production Processing Line UHT Sterilizing

Main Features of Pineapple Juice Processing Line:

Customization: 20 Tons/D - 100 Tons/D available.
Low temperature evaporation resulting improved quality of products.
Energy-saving design, low energy consumption, environmental protection.
All accessories from world famous brand, high stability and low failure rate.

Production Process

Pineapple Production Processing Line

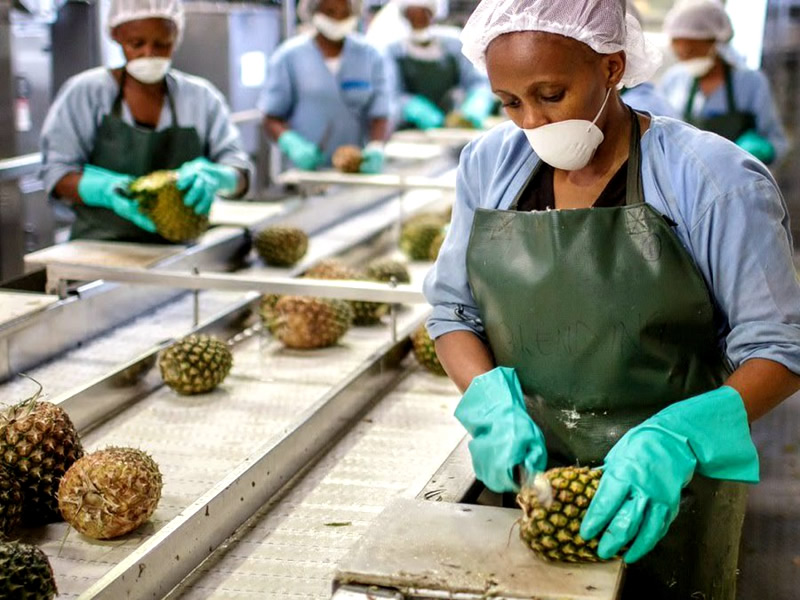

Pineapple Washing Sorting Line

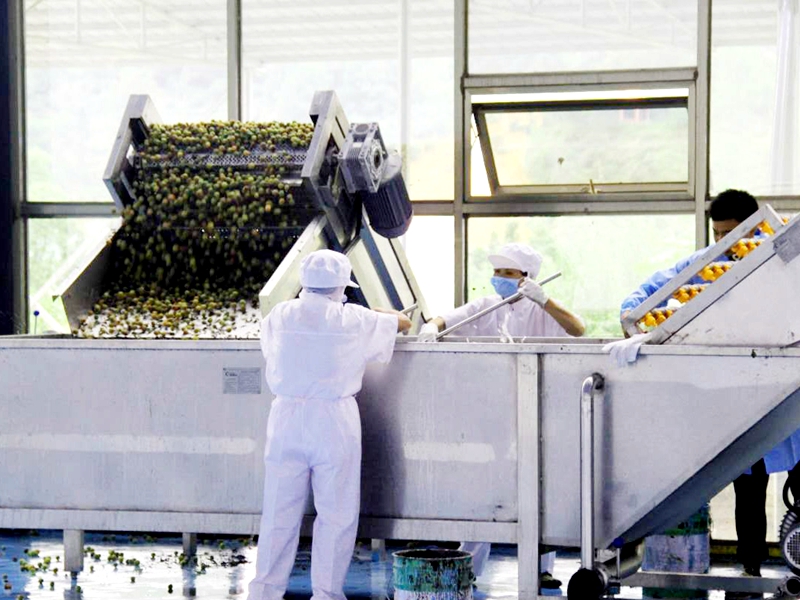

Washing and Sorting

Washing machine is suitable for cleaning any fruit destined to the industrial transformation. The unit takes the fruits through two subsequent washing processes: by immersion in a basin and by shower on an elevator. After being washed, pineapple are fed to our sorting station line where they can be efficiently inspected by the personnel.
Depending on the characteristics of the plant and on the fruit to be processed, pineapple can be sized, than to an automatic sizing machine to be routed to different extraction machines depending on the dimension.
Pineapple are received in the bubble washing machine where, by immersion in the water and thanks to a bubble generating system,the surface of the fruits is washed. Fruits are then rinsed by a shower of fresh water on the elevator that takes the fruits to the Sorting Operations.
In order to guarantee the best quality of the final products, rotten and unripe fruits must be discarded. Chase universal sorting line allows to efficiently inspect the fruits, by making them slowly rotate on a roller belt conveyor under the sight of the operators.

Pineapple Juice Pressing Machine

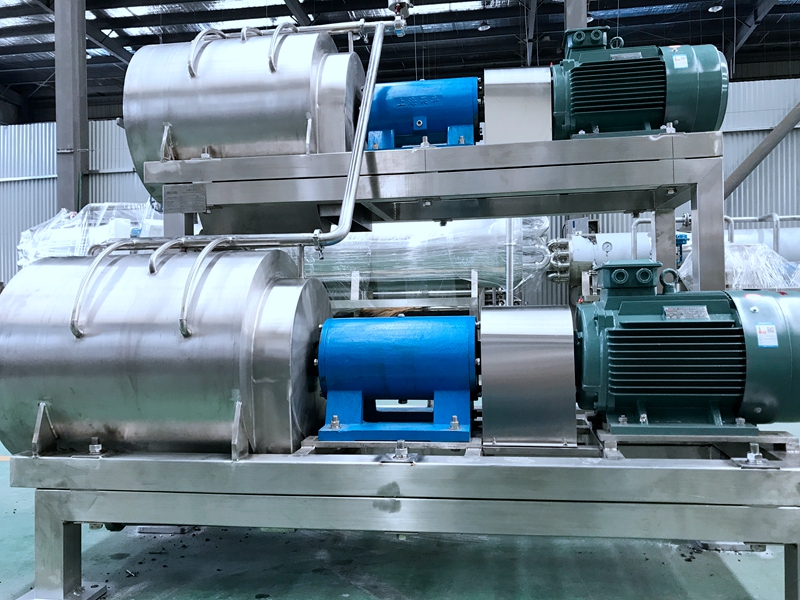

Pineapple Juice Extraction Machine

Puree Extraction and Refining

1. Our dedicated pineapple juice extractor machine cuts the fruit in two halves, extracts juice and pulp and eliminates the peel, while obtaining a pulpy juice of excellent quality. No contact between juice and peel takes place.
 2. For a perfect separation of the puree from peels, Chase is proud of the highly sophisticated pulper, refiner and turbo extractor. The machine can be supplied with inverter suitable to adjust the rotation speed and with an inert gas injection device, for protecting product against oxidation.

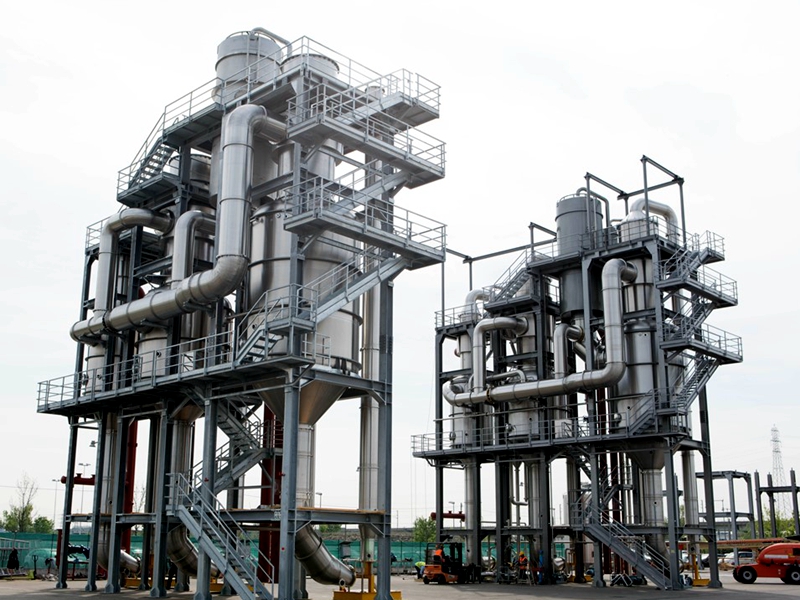

Pineapple Juice Concentration

1. In the first case, the natural puree is fed to a deaerator, in order to remove the air incorporated in the product and
 consequently extend shelflife. The dearation is performed by nebulization under vacuum, in order to avoid oxidation. The aromatic vapors can be condensed and newly incorporated directly into the product by means of an aroma recovery device supplied with the dearator. 2. In the case of concentrated puree, the refined puree is pumped to a thin-film continuous evaporator. The versatility of our swept evaporators is really unrivalled: they can easily process low-pulp or high-pulp juices, delicate or thermo-resistant juices, as well as low or high viscosity juices. The residence time is among the shortest possible and the concentration is achieved in one sole passage.

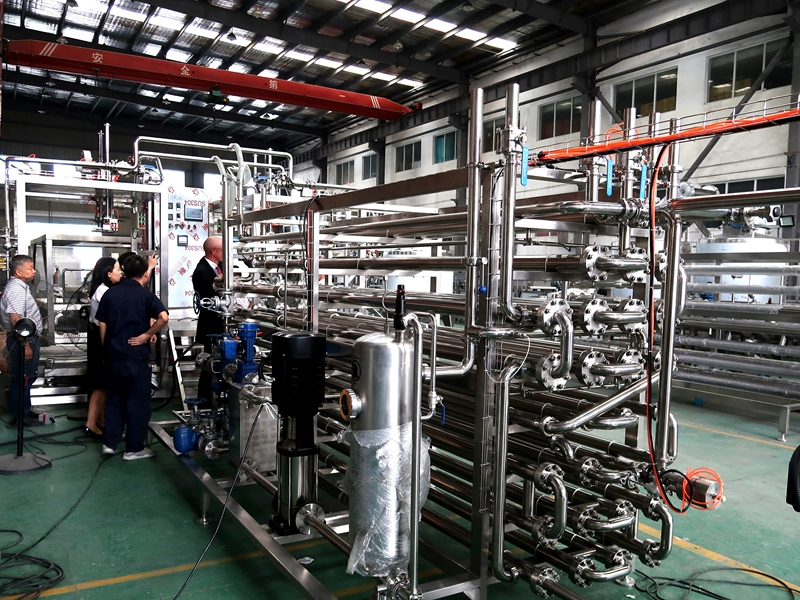

Tubular UHT Sterilizer

Pineapple Juice Aseptic Filling

Sterilizing and Aseptic Filling

1. The pineapple juice, concentrated or natural NFC juice, can be sterilizied or pasteurized depending by the specific request of the application
 2. In case of sterilization, the product can be filled in aseptic bag in drums or in box thanks to Aseptic Filling Machine (aseptic carton box, aseptic pouches...), while can be filled in durms or in any type of hot or cold filling machine (glass, PET, Can and BIB).

Pineapple Juice Puree Beverage Production Processing Making Filling Line
Processing Capacity (Fresh Fruit)	60	150	250	500	750	1000	1250	1500
Water Consumption (t/h)	7	13	22	44	66	88	110	132
Power (kw)	84	152	412	636	955	1292	1411	1558
Steam Consumption (t/h)	1.7	3.9	5.2	9.1	15.1	20.2	24.6	29.2
Compressed Air Consumption (t/h)	66.2	66.2	66.2	66.2	66.2	66.2	66.2	66.2
Cooling Water Consumption (t/h)	125	317	407	585	825	1075	1410	1630

FAQ

Pineapple Juice Puree Beverage Production Processing Making Filling Line

1. Any guarantee of the machines?
 - Yes, one year free maintenance and life time paid service.
2. Can the machines be specially designed for customers?
 - Yes. The color, mark, shape and so on can all be specially designed if customer required.
3. Package?
 - The machines will be wrapped with plastic film and then put in wooden cases.
4. Shipping port?
 - Shanghai. (Other ports available if required)
 5. Transportation
 - Normally via ocean. Air available if required by customer.
