Bag In Box BIB Aseptic Filling Machine With 1 Head

Brand Name : QJ

Place of Origin : Shanghai

MOQ : >=

Payment Terms : L/C, T/T

Packaging Details : International standard package of your request

Item : BIB filling machine

Filling head : 1

Voltage : 220V 50HZ Power≤0.38kw

Accuracy : ±0.5%

Brand : QJ

Country of origin : Shanghai

Contact Now

Product Description

Bag In Box BIB Aseptic Filling Packaging Machine

* Various safety measures(position control, measuring control and temperature control) are provided so as to avoid mechanical damage and ensure product quality.
 * Electromagnetic flow meter is adopted to control the filling volume.
 * Mirror welding technology is adopted to ensure smoothand neat welding seam and reduce product residues.
 * Equipped with small and large working platforms, suitable for packing products of different volumes.
 * The moving parts of valve and filling head adopt steam screening protection. The filling chamber adopts steam sterilization.
 * Programmable logic controller is adopted to realize automatic operation of the equipment.

Item	BIB filling machine	Aseptic bag filling machine
Filling head	1	1 or 2
Voltage	220V 50HZ Power≤0.38kw
Accuracy	±0.5%
Capacity	180-220bag/h(3-5L)	15-30bag/h(220L)
Air consumption	0.7Mpa 0.1m³/min	0.7Mpa 0.4m³/min
Steam consumption	/	0.3Mpa 50kg/h

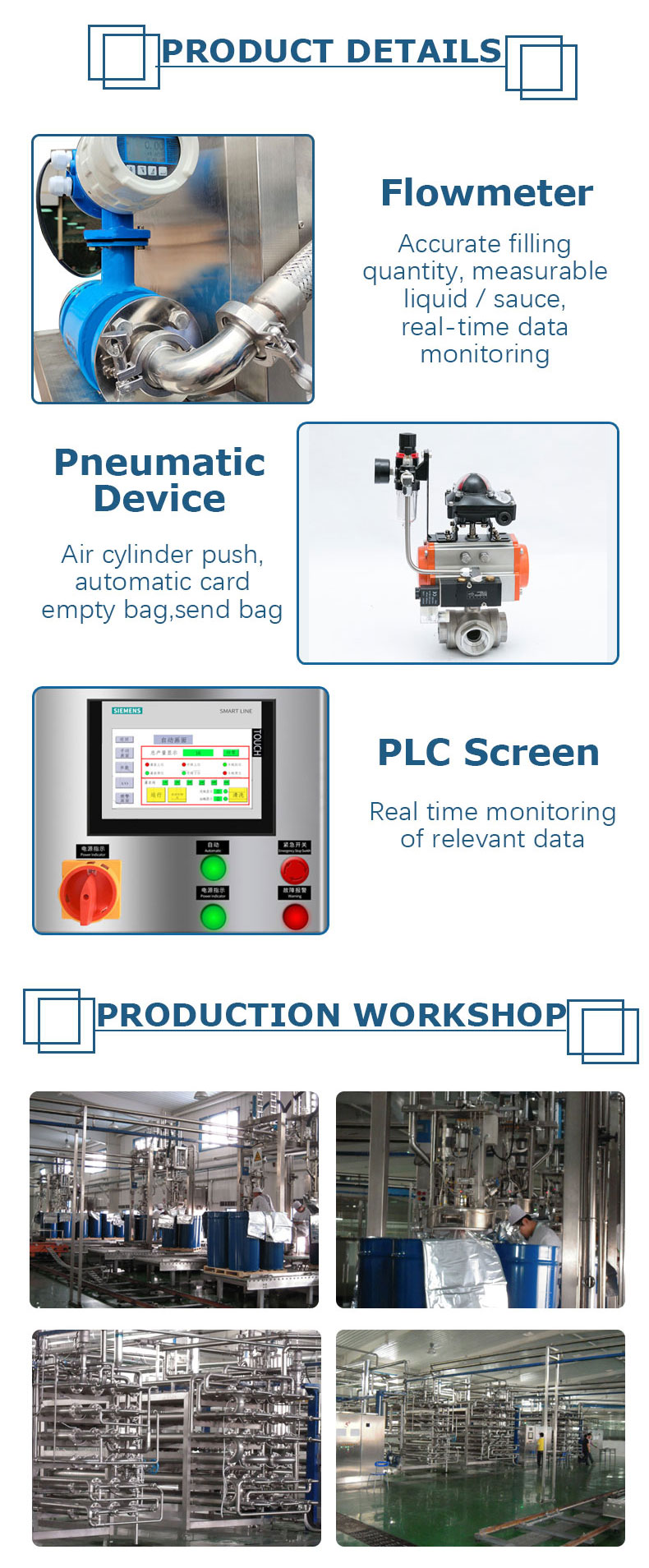

Detailed Images

Bag In Box BIB Aseptic Filling Machine With 1 Head

Product Tags:

BIB Aseptic Packaging Machine

Bag In Box Aseptic Filling Machine

Bag In Box Aseptic Packaging Machine

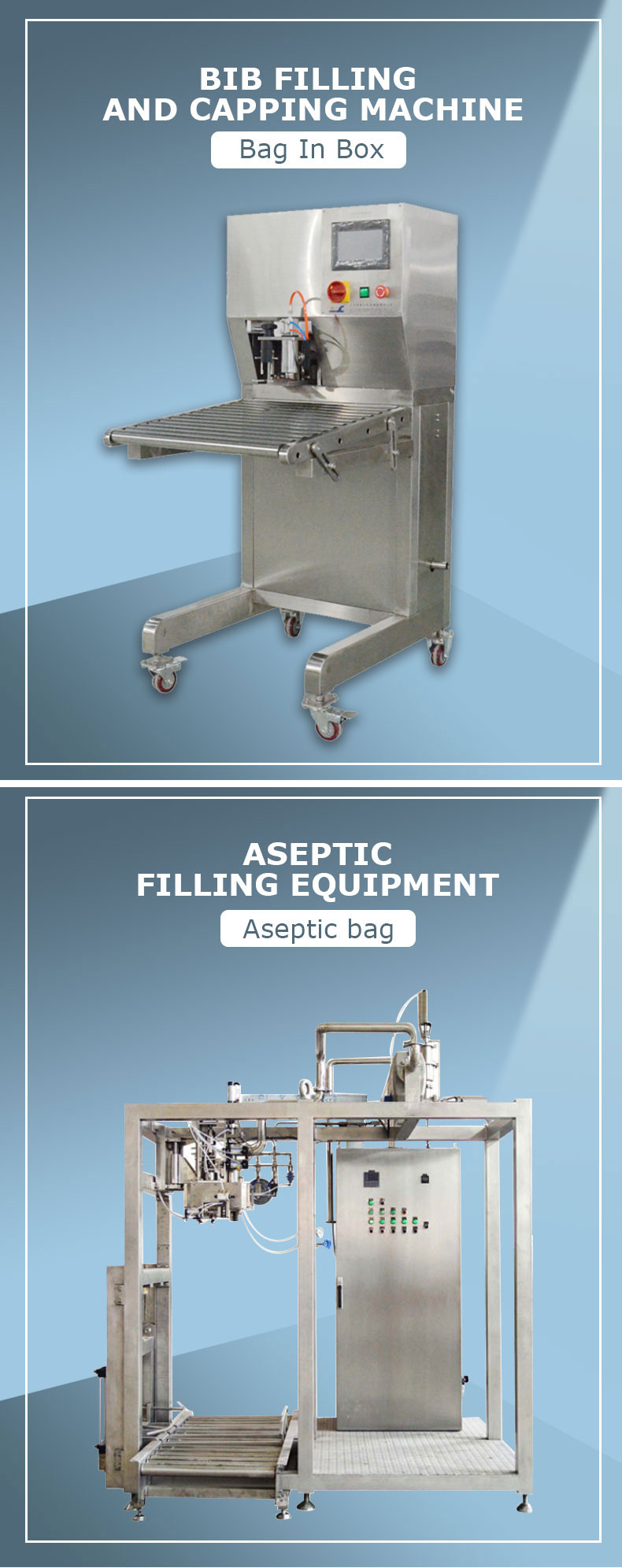

Bag In Box BIB Aseptic Filling Machine With 1 Head Images
