Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L

Product Categories

KUNSHAN YGT IMP.&EXP. CO.,LTD

Contact Now

Brand Name : YGT

Model Number : UHT-JUICE

Certification : CE

Place of Origin : CHINA

MOQ : 1 sets

Price : CUSTOM MADE

Payment Terms : L/C, T/T

Supply Ability : 10 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : export standard

Name : UHT sterilizer

Application : for pineapple juice, mango juice,tea drink etc

Material : SUS304 /SUS316L

Capacity : 500kgs/H-20T/H

Heat Energy : by steam

Advantage : energy save

Contact Now

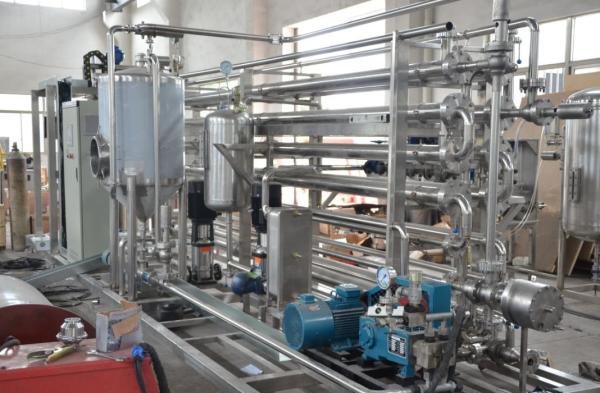

Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L

UHT Sterilizer

1. The robust and flexible UHT plant can withstand a pressure of 60 bar, and heat regeneration is about 85%.

2. YGT Milk /Juice UHT Sterilizer steriliing temperature can be reached to 115-140 degree celsius.

3. YGT Milk /Juice UHT Sterilizer has a buffer tank and hot water tank. The steam valves that we use is Spirax Sarco.

4. Some of Valves and pumps used in Milk /Juice UHT Sterilizer is imported. And this part can use based on customers' requirements.

Technology Data

Tubular sterilization machine
type and specification	capacity (t/h)	steam consumption (kg/h)	steam pressure (kg)	power (kw)	dimension lhd	weight (kg)	diameter(mm)
type and specification	capacity (t/h)	steam consumption (kg/h)	steam pressure (kg)	power (kw)	dimension lhd	weight (kg)	material	steam	medium
YGT-UHT-CH-1MJ	1	120	6.0	2.8	3.3×1.8×2.0	1680	25	1"	25
YGT-UHT-CH-2MJ	2	240	6.0	3.0	3.5×1.8×2.0	1780	25	1"	25
YGT-UHT-CH-3MJ	3	360	6.0	3.7	3.5×1.8×2.0	1900	38	DN32	38
YGT-UHT-CH-4MJ	4	480	6.0	3.7	3.5×1.8×2.0	2060	38	DN40	38
YGT-UHT-CH-5MJ	5	600	6.0	3.7	3.5×1.8×2.0	2200	38	DN40	38
YGT-UHT-CH-6MJ	6	720	6.0	3.7	3.5×1.8×2.0	2360	51	DN50	51
YGT-UHT-CH-8MJ	8	960	6.0	4.4	3.5×2.0×2.2	2520	51	DN50	51
YGT-UHT-CH-10MJ	10	1200	6.0	7.0	3.5×2.0×2.2	2780	51	DN60	51
YGT-UHT-CH-15MJ	15	1800	6.0	8.0	3.5×2.0×2.2	3020	63	DN65	63
YGT-UHT-CH-20MJ	20	2400	6.0	11.0	3.5×2.0×2.2	3300	63	DN80	63
Process:30℃→140℃(4s)→90℃→(40℃return) (Cooling water)1:2≤30℃

Pineapple Juice / Tea Drink UHT Sterilization Machine SUS304 / SUS316L
