Full Set Mango Juice Processing Plant Small Fruit Production Line

Brand Name : qj

Place of Origin : shanghai

MOQ : >>1

Price : $20000-100000/unit

Payment Terms : T/T, L/C

Delivery Time : 45days

Packaging Details : international package of your request

Certification : CE

Voltage : 220V/380V

Automatic grade : Automatic

Condition : New

Application : Beverage

After-sales service provided : Engineers available to service machinery overseas

Material : SUS304/316

Contact Now

Product Description
Full Set Mango Juice Processing Plant Small Fruit Production Line
mango juice production line/Mango processing plant
The fruit processing plant is mainly composed of washer, Sort conveyor, Elevator, Preheater / De-stoner , Pulping & Refiner, Buffer tank & pump, Evaporation, Holding tank, Sterilizer,Aseptic filler and other processes. The plant equipment is mainly used in tomatoes, mangoes, guava and other products
Specification
Raw material
mango, tomato, guava
Final product
mango puree/jam, tomato paste, guava concentrate
Capacity
3-25t/h
Juice yielding rate
45-55%(mango), 90-95%(tomato)
Soluble solid content (fresh juice)
14-16brix (mango ), 4-4.5brix(tomato ), >9brix(guava)
Soluble solid content (Final pulp)
14/28brix (mango ), 28-30/36-38brix(tomato ), >20brix (guava )
Consistency(Bostwick at 20℃)
6-12/3.5-10(mango), 4-8(tomato),3.5-8(guava)
Final product package
Aseptic bag220/1400L//BIB 25L// Can tin 400g/800g

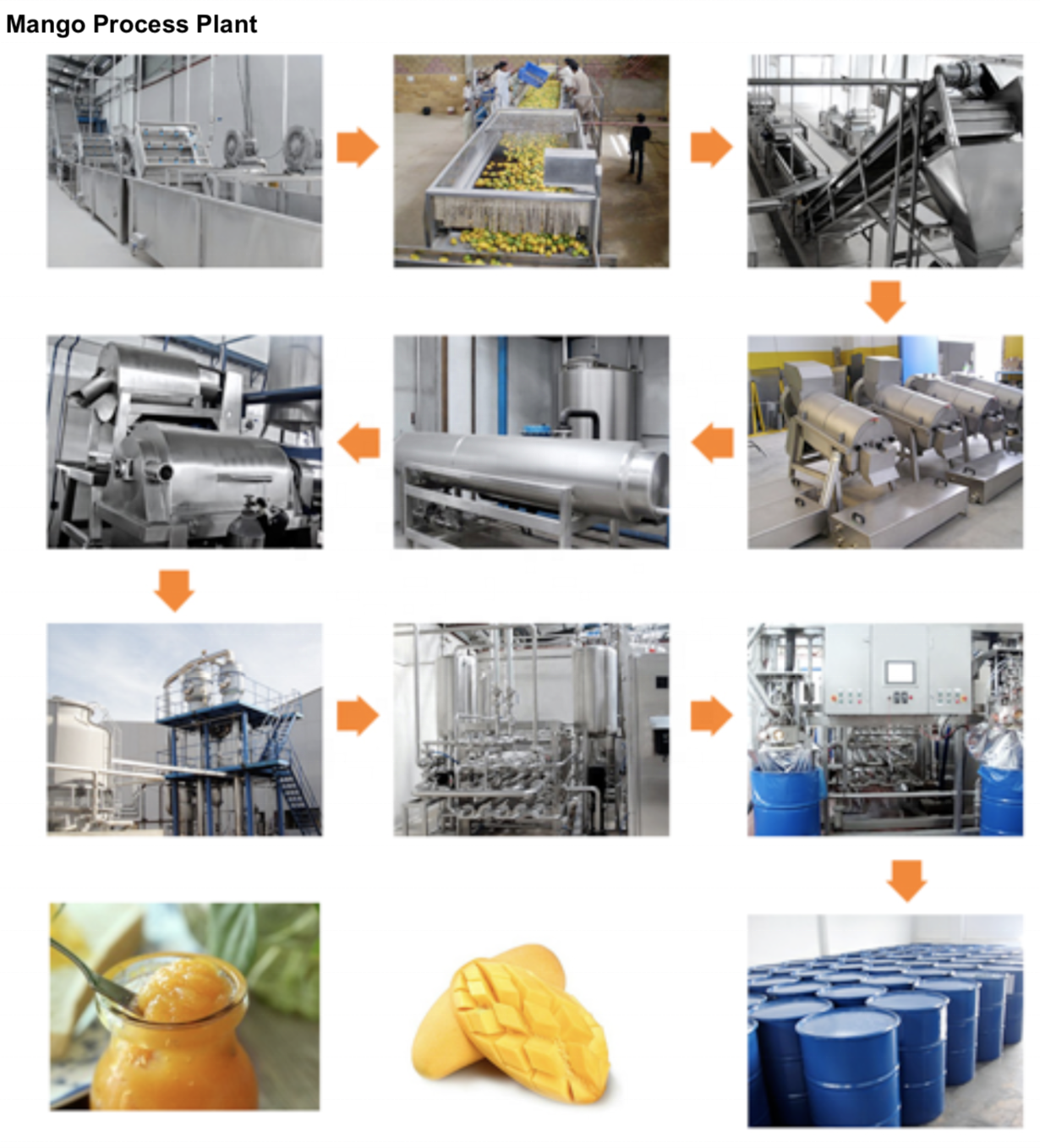

Process Flow
Full Set Mango Juice Processing Plant Small Fruit Production Line
Full Set Mango Juice Processing Plant Small Fruit Production Line

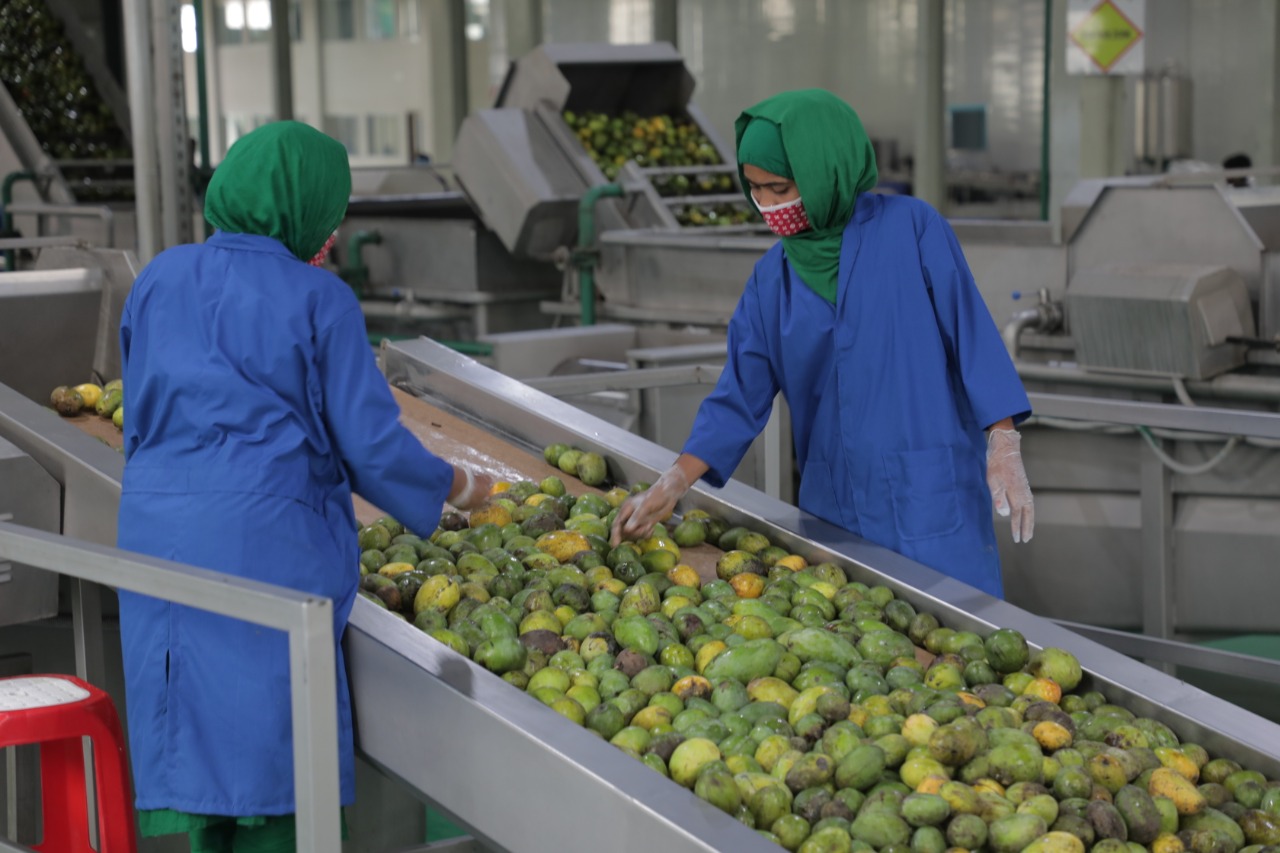

(1) Washer and sorter——first pass the original fruit through the washing machine for cleaning and sort out unquality
(2) Preheater——soften the mango skin by steam, and which prepare for peeling improve the efficient
Full Set Mango Juice Processing Plant Small Fruit Production Line
Full Set Mango Juice Processing Plant Small Fruit Production Line
(4) Destoner and pulp finisher - to separate the mango pulp and remove the skin and seed, by 2 stage process. largest decrease the waste of pulp and make seed/skin clean

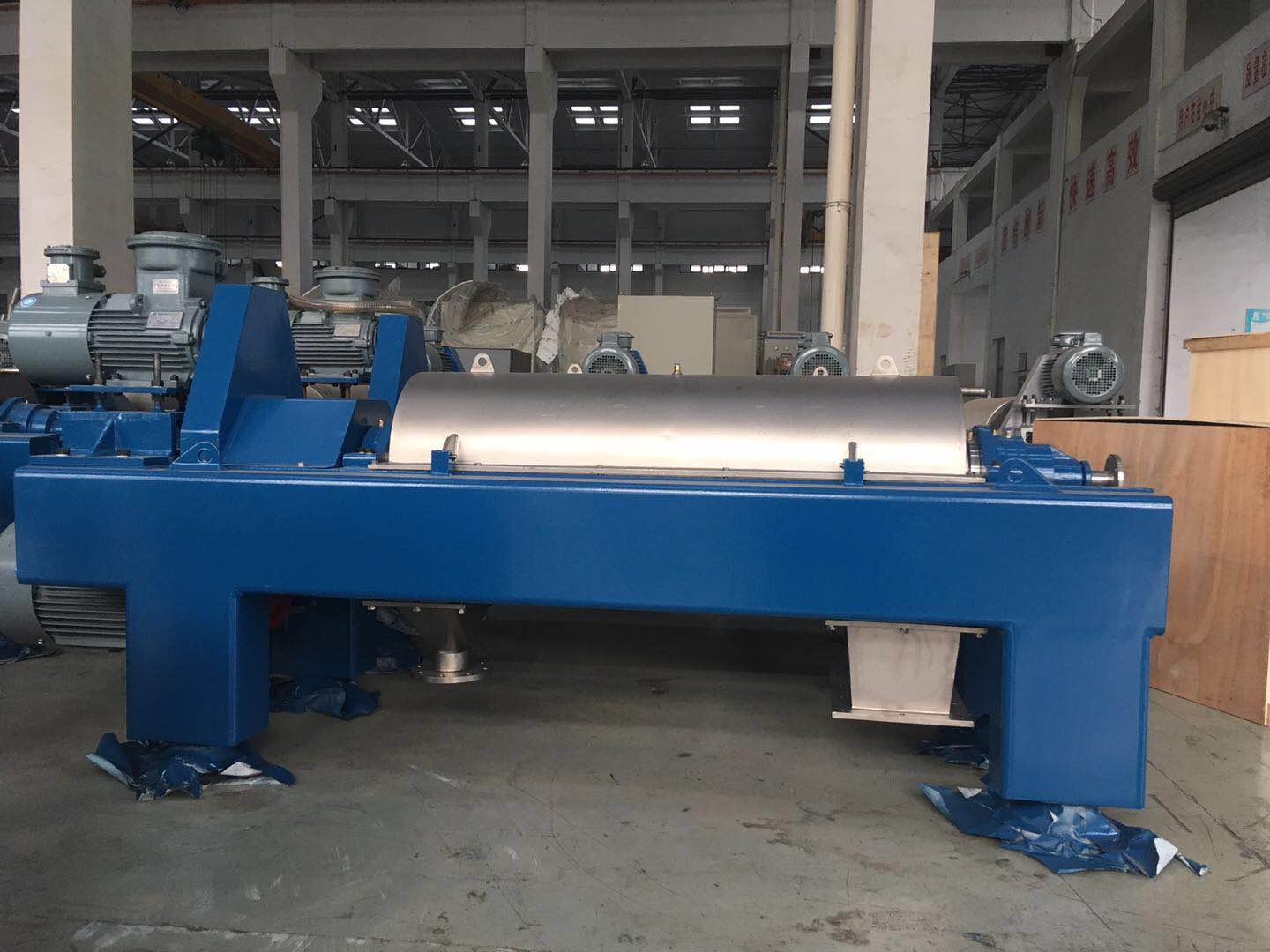

(5)Decantor —— via fast speed to centrifuge the pulp to be more smooth,and remove black dot, improve the pulp quality ,it is key machine of the plant
Full Set Mango Juice Processing Plant Small Fruit Production Line
Full Set Mango Juice Processing Plant Small Fruit Production Line
(6)Sterilizer——the jam juice in the storage tank is delivered to the sterilization machine or sterilization pipeline through the transfer pump for sterilization.
(7)Aseptic filler ——Finally, the product is filled through the filling machine. The choice of the filling machine depends on the form of the filled container, such as the filling of aseptic bags, glass bottles and other containers.
Full Set Mango Juice Processing Plant Small Fruit Production Line
Company Profile
Our company mainly work for aseptic filler, sterilizer, juice extractor etc fruit processing equipment, all our engineer team work in this process industry with 12 years experience, except single key machine, we could also provide turnkey project solution - mango juice production line/Mango processing plant,
Our Service
Service for Production Line Full set mango paste making machine production line for sale. (1)Reply in 24 hours (2)Providing professional solutions (3)Every product will be tested before the delivery (4)Delivery on time and excellent after-sale service (5)High quality, reliable price
FAQ
1. who are we?
We are based in Shanghai, China, start from 2006,sell to Mid East(15.00%),Eastern Asia(15.00%),Western Europe(12.00%),North America(10.00%),Africa(10.00%),Southeast Asia(10.00%),Northern Europe(6.00%),South America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South Asia(4.00%),Southern Europe(3.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
sterilization machine,pasteurizer machine,heat exchange,CIP system,filling machine

4. why should you buy from us not from other suppliers?
1. update the technology every year, and with many sole patent 2. choose top international brand for as material and part, to guarantee equipment steady 3. long term available for spare parts like sealing and gasket

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,German,French,Korean,Italian
